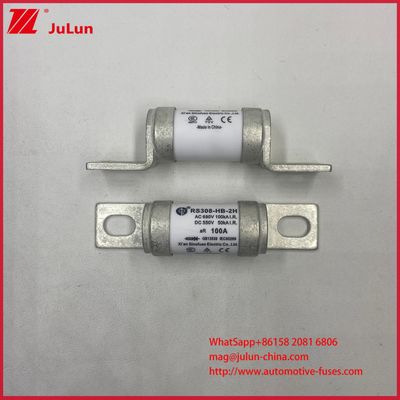

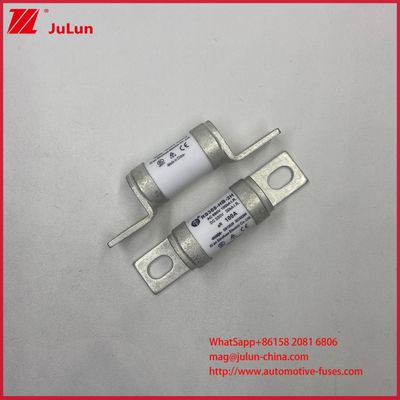

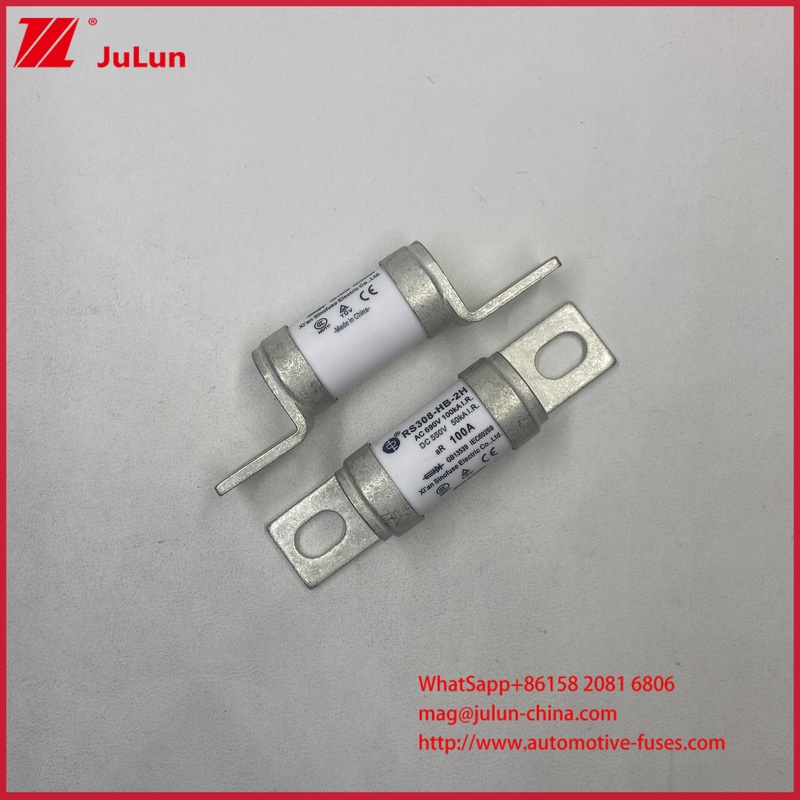

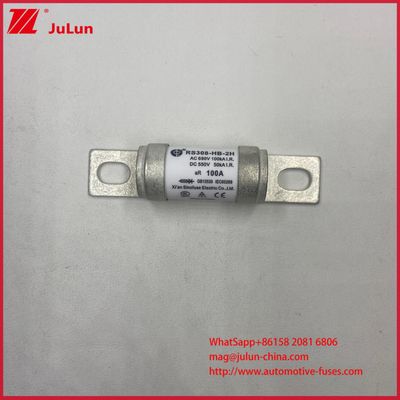

Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | SINO FUSE |
| Certificering: | UL |
| Modelnummer: | RS308-HB-2H 63A 80A |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | 10 |
|---|---|
| Prijs: | 5~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Betalingscondities: | T-T, T/T |
| Supply Ability: | 1000K/PCS |
|
Gedetailleerde informatie |
|||
| Nominale stroom: | 10A tot 710A | Installatie bout: | M6 M8 |
|---|---|---|---|
| Montagemethode: | schroefbout | Materiaal: | Keramisch koper zilver kwarts zand goud |
| Functie: | Kleine afmetingen met een hoge nominale stroom voor kortsluitingsbescherming | Breekcapaciteit: | AC100KA@COSφ0.2，DC50KA@L/ R≤10ms |
| De prestatie verwijst: | IEC60269, en de milieubetrouwbaarheid voldoet aan ISO8820, JASO D622 en GB/T31465 | Toepassingsproduct: | EV tractie systeem, vermogen omzetting, energieopslag, auto-oplader en enz. |
| Markeren: | ceramic automotive fuses for round pipe,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses |
||
Productomschrijving
Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
In summary, the Ceramic Automotive Fuses combine compactness with high current capacity, robust ceramic construction, and dependable bolt-connected fast fuse mounting, making them an excellent choice for modern automotive electrical protection. Their compliance with international performance and environmental standards assures users of their quality and reliability. Whether for passenger cars, commercial vehicles, or specialized automotive equipment, these Ceramic Car Fuses provide effective and durable short circuit protection, helping to maintain electrical system integrity and vehicle safety.
Technical Parameters
| Performance Standard | IEC60269 |
|---|---|
| Environmental Reliability | Complies with ISO8820, JASO D622, and GB/T31465 |
| Rated Voltage | AC690V / DC550V |
| Installation Bolt | M6, M8 |
| Rated Current | 10A to 710A |
| Application | EV Traction System, Power Conversion, Energy Storage, Car Charger, and etc. |
| Mounting Method | Screw Bolt |
| Installation Mode | Recommended Tight Torque |
| Breaking Capacity | AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms |
| Feature | Small Size with High Current Rating for Short Circuit Protection |
| Usage Category | AR |
